Audex Pontoons

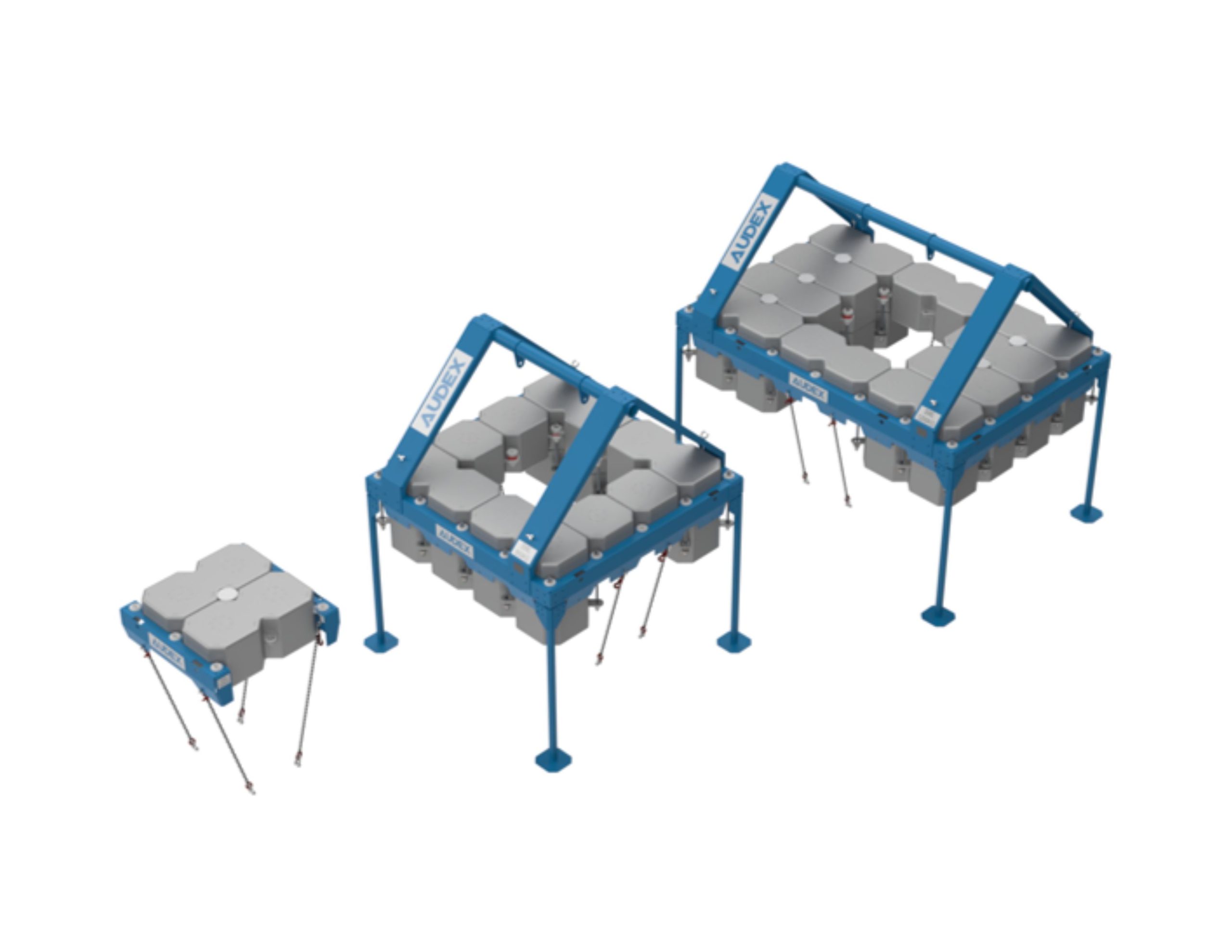

Industrial pontoon range for Audex submersible pumps.
The pontoons are made to order to suit the customers exact requirements and specification.
Overview
Position submersible pumps close to the water surface using a floating pontoon to minimise the intake of foreign materials such as weeds, silt, and stones, and to reduce pumped-water turbidity.
Optional support legs and a lifting frame protect the pump during low-water conditions and enable straightforward installation from the bank using a telehandler or excavator—eliminating the need for personnel to access the pontoon on the water.
Features & Benefits
- Available Safe Working Loads (SWL): 120 kg, 200 kg, 550 kg, 700 kg, 800 kg, 1200 kg
- Pump mounted near the water surface to reduce debris intake
- Optional pontoon legs for pump protection in low-water conditions
- Optional lifting frame for simple installation
- Robust steel frame with HDPE float modules for long service life
Specification
| Safe Working Load (SWL) | kg | 120 | 200 | 550 | 700 | 1200 |
| Legs & lifting frame available? | No | Yes | Yes | Yes | Yes | |
| Mass | ||||||
| Core pontoon | kg | 80 | 230 | 310 | 360 | 440 |
| Core pontoon with legs | kg | NA | 285 | 365 | 415 | 500 |
| Core pontoon with lift frame | kg | NA | 370 | 450 | 505 | 595 |
| Core pontoon with legs & lift frame | kg | NA | 425 | 510 | 565 | 655 |
